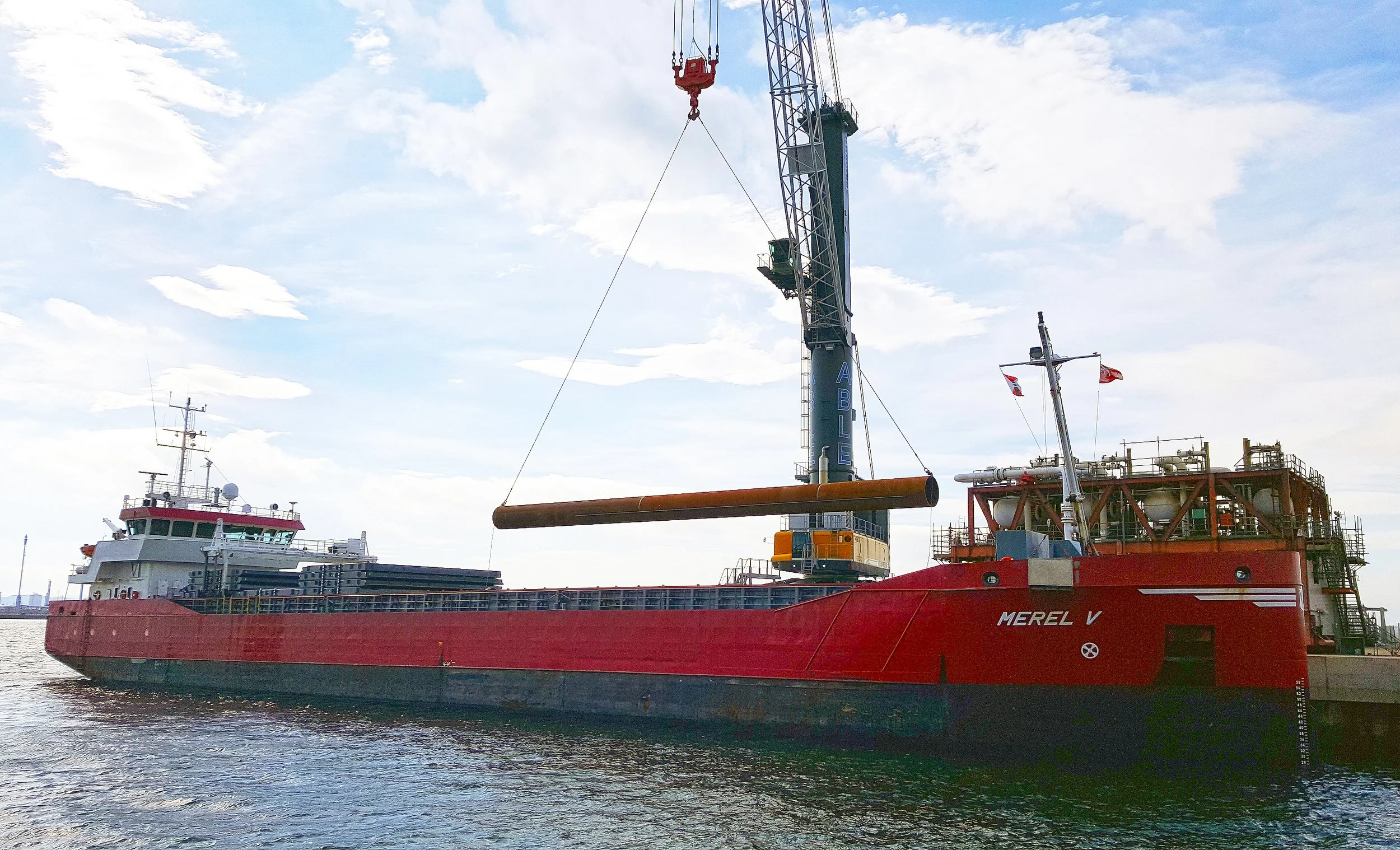

The LHM600 SHL is characterised by rapid and efficient handling of loads up to 208t. It also optimally manages the
handling of containers, as well as general and bulk cargoes. With an outreach of up to 58 metres, the LHM600 SHL is the
ideal handling solution for ships up to Superpost-Panamax size.
Unique technology such as the optimised undercarriage concept or the specialist developed crane control system make Liebherr mobile harbour cranes among the most powerful material handling equipment in the world. The flexibility of
the mobile harbour crane makes it effective for all areas of application in the harbour and thereby guarantee the highest level of effectiveness.
• The UK’s largest harbour crane.
• Lifting capacity 208t.
• Travel on-site 5km/hr.
• Max. radius 58m (116m diameter).
• Hoisting/lowering max - 90 m/min.
• 61m Hook Height
• 23.4m Boom pin height - allows increased reach over tall structures
• Can operate up to 24m/s wind speed
• Can operate anywhere on site without load spreading
• 360° Steering
• Increased fulcrum height in order to reach over tall structures
• Specialist equipment includes 200t rotation managed hook,
recording of weights per lift, cycles and weight handle per shift,
container handling equipment and 16 m³ digging grab.
